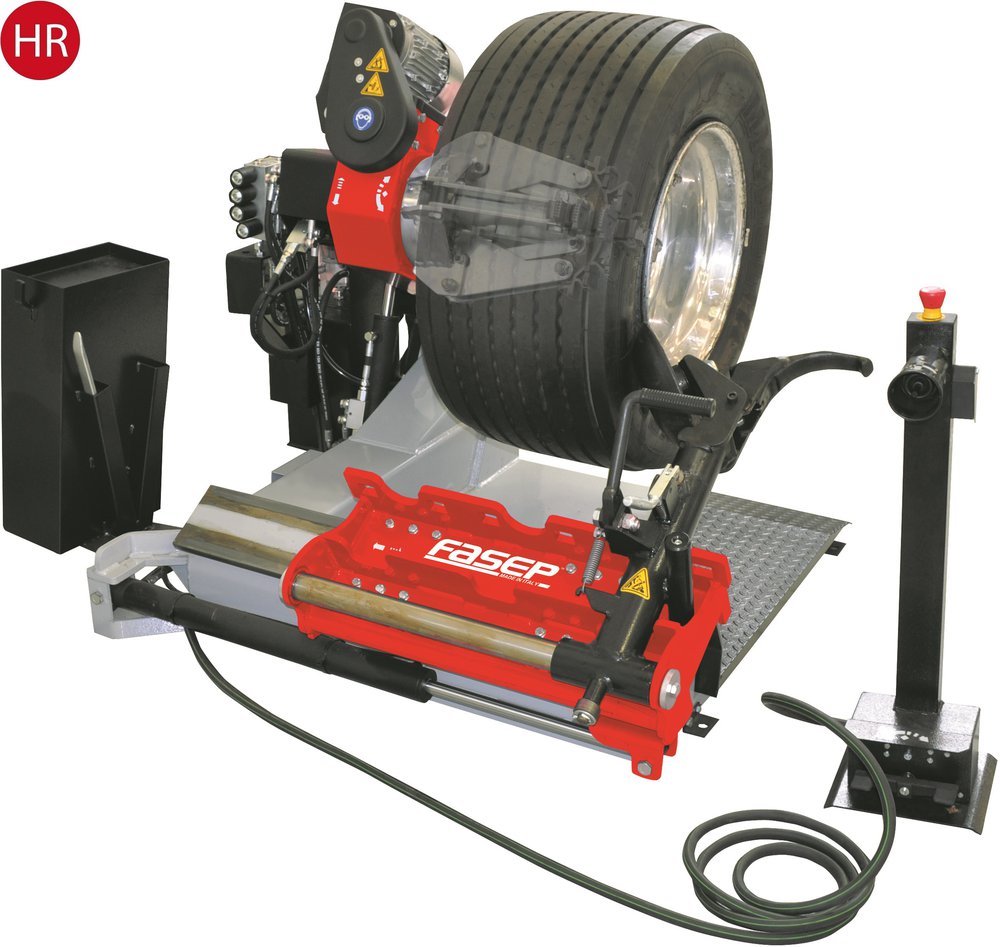

Universal truck tire changer (commercial) is a professional unit, designed for tire service shops with heavy work load of commercial trucks wheels (up to 27").

Möguleikar

- Automatic Truck Tyre Changer for Trucks

- Suitable for normal and tubeless tires

- Suitable for groove rims and split ring rims

- Self-centering hydraulic chuck with 4 clamping jaws

- 2 speed Motor

- Clockwise and anticlockwise rotation of the chuck

- Universal toolhead

- Hidraulic lifting of chuck (up and down)

- Electro-Hydraulic displacement (left right ) of the arm that contains the toolhead.

- Toolhead with manual lifting and rotation

- Mobile remote control (low voltage)

- Mobile ramp for easy positioning of the wheel

- Hydraulic pump motor 1,1 kW (1,5 Hp)

- Safety valve on hydraulic circuit

- Valve to adjust pressure on hydraulic circuit

- Chuck Gearbox motor 1,5 kW (2,0 Hp)

- Spindle shaft working height min 330 mm

- Bead breaking force (in/out) 18.3 kN

- Max rotation torque 3,6 Kn

- Clamping force max 33 kN

- Rim central hole min 80 mm

- Max wheel weight 1500 kg

- Rim max diam. 13-27"

- Max wheel diam 1640 mm (64")

- Max wheel width 780 mm (30,5")

- Noise < 70 dB (A)
